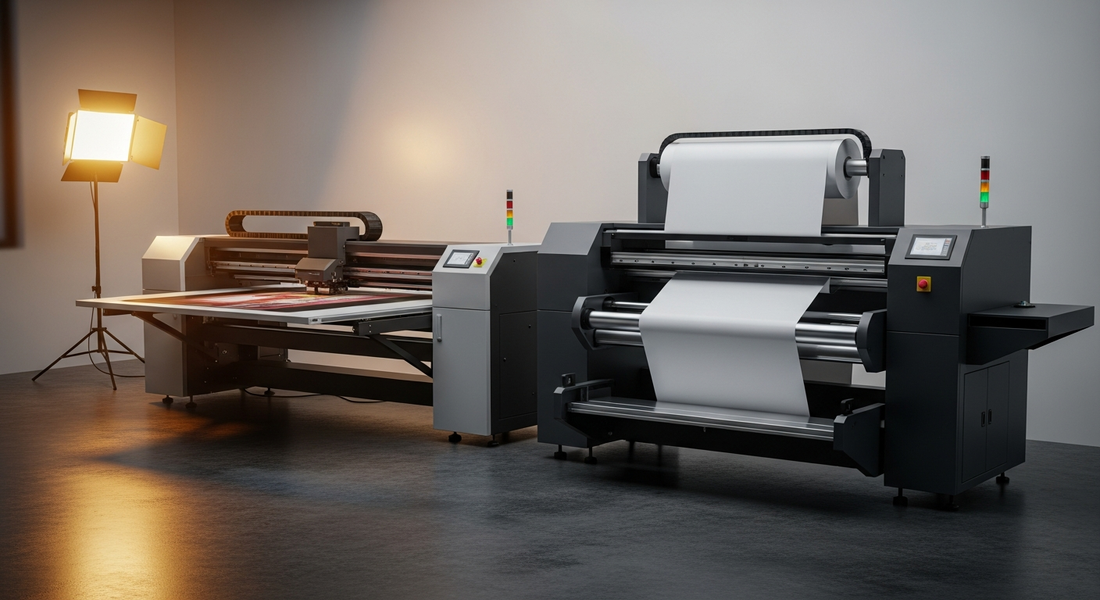

Roll-Feed UV DTF Printer vs Flatbed UV Printer: How to Choose

This guide breaks down how each format works, which jobs it handles best, and the questions worth answering before you commit to either one. Roll-feed machines are usually sold as UV DTF printers, while flatbed systems are more accurately described as flatbed UV printers. The two share UV-cure technology but serve fundamentally different production goals.

What Each Format Actually Does

UV DTF printing uses ultraviolet light to cure ink as it is deposited, eliminating extended drying time. That applies to both formats. The difference is in the substrate: what the machine can physically hold and print on.

Roll-Feed UV DTF Printers

A roll-feed UV DTF printer runs flexible film through the machine on a continuous roll. The printhead deposits UV-curable ink onto the film, a laminate layer is then applied over the print, and the result peels off as a ready-to-apply transfer sticker. These transfers bond to smooth, clean, dry, mostly non-porous surfaces such as glass, acrylic, coated metal, plastic, and packaging surfaces, which makes them useful for branded merchandise, product labels, packaging graphics, custom decals, and promotional sticker runs.

The roll-feed format is built for repeatable, high-volume output on continuous film stock. Shops with large sticker or branded-wrap runs find this format turns production into a continuous process rather than a one-at-a-time operation.

Flatbed UV Printers

A flatbed UV printer holds the substrate on a stationary bed while the printhead moves across it. This allows printing directly onto rigid objects: phone cases, plaques, tiles, signage blanks, awards, and tumblers or cylindrical items when the printer supports rotary attachments or compatible fixtures.

There is no transfer film involved. Ink goes from the machine onto the object, cures under UV light in the same pass, and the job is finished. Flatbed UV is direct-to-object output on hard goods, with no application step required.

Roll-Feed vs Flatbed UV: How the Workflows Differ

This is the point that generic equipment comparisons miss. Both formats run UV ink and cure it in-line, but the production steps differ, and those steps are where quality issues actually originate.

Roll-feed UV DTF output requires a laminate application after printing. The laminate film is pressed onto the printed surface to form the transfer layer the end customer peels and applies. The quality of that lamination directly affects how well the transfer bonds and how long it lasts on the final substrate. Shops that rush the laminate step or use incompatible film stock see peeling failures that show up after the product is already in the customer's hands. The laminate is not a finishing touch. It is a structural part of the output. Treat it like one.

Flatbed printing skips the transfer step entirely but introduces a different critical variable: substrate preparation. Printing directly onto an object means any contamination, surface coating, or texture irregularity on that item affects how the ink bonds. Some substrates may require cleaning, flame or plasma treatment, or primer depending on surface energy and coating. A flatbed shop that skips these preparation protocols will see early adhesion failures for the same reason a roll-feed shop sees them from sloppy lamination. The specific discipline is different; the consequence of skipping it is the same.

Which Jobs Each Format Handles Best

Some shops serve both markets; the deciding factor is which category represents your primary revenue.

Four Questions to Answer Before You Buy

1. What are your customers actually ordering? Review your current job mix or the prospects you want to close before settling on a format. If demand is stickers, wraps, and branded transfers, roll-feed serves that. If demand is hard-goods promotional products, flatbed serves that. Buying the more technically interesting machine that does not match your customers is expensive.

2. What volume do you need to support? Roll-feed equipment is optimized for continuous runs. If your UV sticker orders are sporadic or low-volume, a smaller unit may be more appropriate than a full commercial roll-fed setup. Flatbed volume depends on job complexity and units per run, not just total order count.

3. What does your current setup already handle? A shop running a DTF printer and dryer setup for apparel transfers already has workflow experience that carries over to roll-feed UV DTF. A sign shop or promotional products company already handles rigid substrates and fits cleanly into flatbed UV.

4. What is your floor space and ventilation situation? Both formats require real footprint and ventilation. Get equipment dimensions and airflow requirements from the product pages before you finalize a layout or commit to installation.

What About Hybrid Configurations?

Some UV printer models handle both roll media and rigid flatbed substrates, which suits shops with genuine production across both categories.

A machine designed to do two jobs competently will not outperform a purpose-built machine on either job at the same investment level. For a shop with clear primary volume in one format, a purpose-built machine will deliver better throughput and easier day-to-day operation. For shops with genuine revenue split across both substrate types, a hybrid is worth evaluating against two purpose-built units before committing to either approach.

Conclusion

The roll-feed vs flatbed UV decision comes down to what your output actually looks like. Roll-feed UV DTF is a transfer-production format built for flexible film and high-volume sticker runs where the end user applies the finished transfer themselves. Flatbed UV is a direct-to-object format built for rigid substrates and promotional hard goods where the print is finished on the machine. Flatbed UV can print on some flat label materials, but it is not optimized for continuous flexible sticker-roll production.

Both formats are part of the broader UV equipment category at DTF Printer USA. If you are working through a buying decision, reach out for a recommendation matched to your job mix, or browse the full heat press and equipment lineup to build out your setup.
