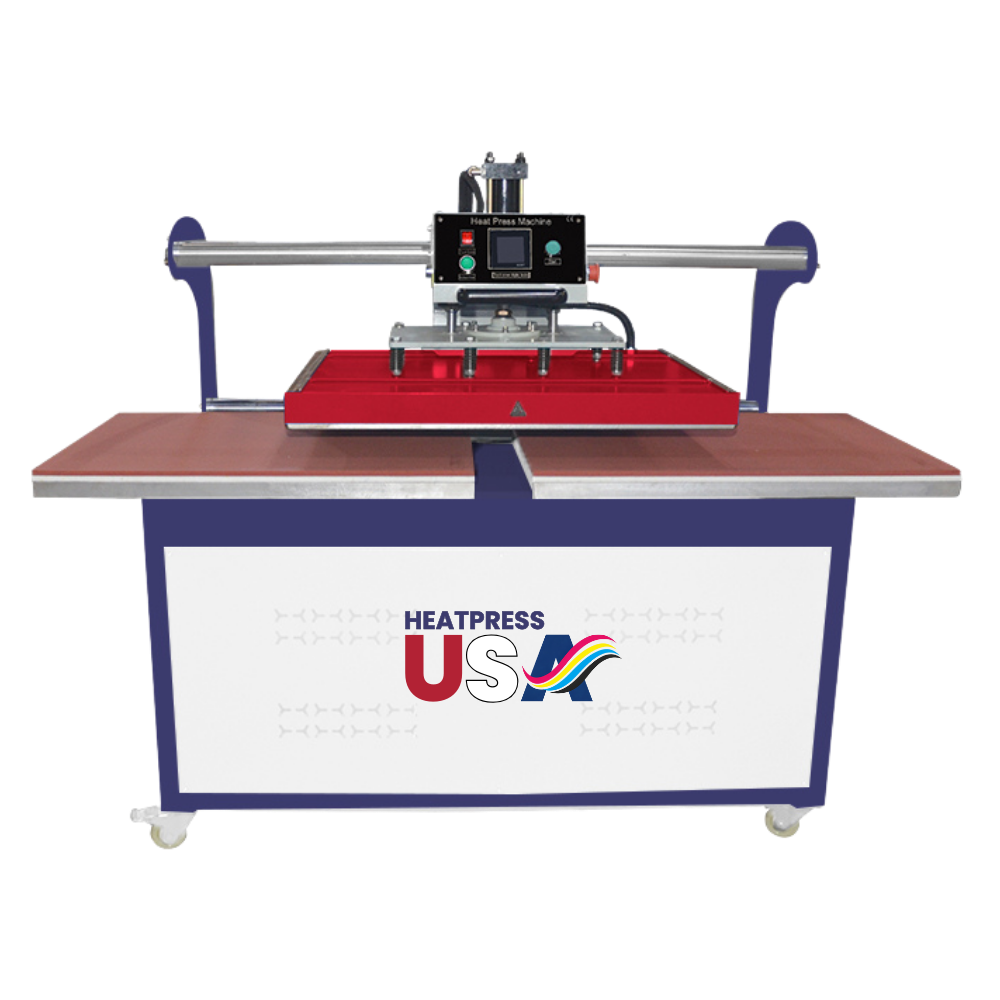

Hydraulic Heat Press Machine - Large Format

Hydraulic Heat Press Machine - Large Format

$3,355.00
$4,500.00
$3,355.00
Save $1,145.00
SKU: HP-2432H

Model: HeatpressUSA HP-2432H
Heating plate size : 24”x 32” (60 x 80 cm)
Power supply: 3000W, 220V,14A
Max Pressure: 120 psi
Dimensions: 39 in (L) × 33 in (W) × 55 in (H)

Model: HeatpressUSA HP-1624H
Heating plate size : 16”x 24” (40 x 60 cm)
Power supply: 2400W,110V,22A
Max Pressure: 120 psi
Dimensions: 39 in (L) × 28 in (W) × 55 in (H)

Model: HeatpressUSA HP-1620H
Heating plate size : 16”x 20” (40 x 50 cm)
Power supply: 2100W,110V,19A
Max Pressure: 120 psi
Dimensions: 39 in (L) × 33 in (W) × 55 in (H)

Size: 24x32

Based in the USA

Secured Payment

Returns & Refunds

Same-Day Shipping

gear

Technical Support

Hydraulic Heat Press Machine - Large Format

Hydraulic Heat Press Machine - Large Format

$4,500.00 $3,355.00
Hydraulic Heat Press Machine - Large Format

Hydraulic Heat Press Machine - Large Format

$4,500.00 $3,355.00
Size: 24x32

    This 24 x 32 hydraulic heat press machine is designed for large-format production environments that require maximum pressing area, high pressure stability, and consistent performance over extended operating cycles. Using a hydraulic oil-pressure mechanism, this model delivers uniform and reliable pressing force without the need for an external air compressor.

    The machine features a 24 x 32 in (60 x 80 cm) heating plate with dual platens, allowing operators to prepare garments on one pallet while pressing on the other. This configuration supports continuous workflow and improves productivity when handling oversized transfers or high-volume apparel orders.

    With a maximum pressure of 120 psi, a temperature range up to 260°C, and an adjustable time range up to 999 seconds, this heat press is suitable for demanding applications such as large DTF transfers, oversized heat transfer vinyl designs, and other apparel decoration processes that require even pressure across a wide surface.

    Operating on 220V power, this hydraulic heat press is well suited for professional print shops that need a large-format, self-contained pressing solution with consistent force delivery and repeatable results.

    This 16 x 24 hydraulic heat press machine is built for production environments that require larger pressing area, high pressure stability, and consistent performance over long duty cycles. Using a hydraulic oil-pressure mechanism, this model delivers uniform pressing force without the need for an external air compressor.

    The machine features a 16 x 24 in (40 x 60 cm) heating plate with dual platens, allowing operators to load garments on one pallet while pressing on the other. This configuration supports continuous production and helps reduce idle time between press cycles.

    With a maximum pressure of 120 psi, a temperature range up to 260°C, and an adjustable time range up to 999 seconds, this heat press is well suited for demanding transfer applications such as large-format DTF transfers, heat transfer vinyl, and other apparel decoration processes that require firm, even pressure across a wider surface.

    Operating on 110V power, this hydraulic heat press is designed for commercial print shops that want higher pressing capacity and consistent force delivery in a self-contained system.

    This 16 x 20 hydraulic heat press machine is designed for production environments that require higher pressing force, stable pressure delivery, and long-duty cycle performance. Unlike pneumatic models, this unit uses a hydraulic oil-pressure mechanism, providing consistent pressing force without reliance on an external air compressor.

    The machine features a 16 x 20 in (40 x 50 cm) heating plate with dual platens, allowing operators to load garments on one pallet while pressing on the other. This configuration helps reduce idle time between cycles and supports steady production output in commercial apparel workflows.

    With a maximum pressure of 120 psi, a temperature range up to 260°C, and an adjustable time range up to 999 seconds, this hydraulic heat press supports demanding transfer applications including DTF transfers, heat transfer vinyl, and other apparel decoration processes that require firm, uniform pressure.

    Designed to operate on 110V power, this model is well suited for print shops that prefer a self-contained pressing system with consistent force delivery and reduced dependency on compressed air infrastructure.

    Model: HeatpressUSA HP-2432H

    Mechanism: Hydraulic (oil pressure)
    Heating plate size : 24”x 32” (60 x 80 cm) - 2 pallets
    Max Pressure: 120 psi, 0.8 MPa, 120 lbs/in²
    Power supply: 3000W, 220V, 14A
    Temperature Range: 0-260℃
    Time Range: 0-999S

    Machine Weight: 530lbs
    Machine Dimensions: 39 in (L) × 33 in (W) × 55 in (H)

    Package Weight: 600 lbs
    Package Dimensions: 39 in (L) × 35 in (W) × 57 in (H)

    Model: HeatpressUSA HP-1624H

    Mechanism: Hydraulic (oil pressure)
    Heating plate size : 16”x 24” (40 x 60 cm) - 2 pallets
    Max Pressure: 120 psi, 0.8 MPa, 120 lbs/in²
    Power supply: 2400W,110V, 22A
    Temperature Range: 0-260℃
    Time Range: 0-999S

    Machine Weight: 485 lbs
    Machine Dimensions: 39 in (L) × 28 in (W) × 55 in (H)

    Package Weight: 550 lbs
    Package Dimensions: 39 in (L) × 35 in (W) × 57 in (H)

    Model: HeatpressUSA HP-1620H

    Mechanism: Hydraulic (oil pressure)
    Heating plate size : 16”x 20” (40 x 50 cm) - 2 pallets
    Max Pressure: 120 psi, 0.8 MPa, 120 lbs/in²
    Power supply: 2100W,110V, 19A
    Temperature Range: 0-260℃
    Time Range: 0-999S

    Machine Weight: 455 lbs
    Machine Dimensions: 39 in (L) × 33 in (W) × 55 in (H)

    Package Weight: 520 lbs
    Package Dimensions: 39 in (L) × 35 in (W) × 57 in (H)

    Warranty & Important Details

    The Heat Press includes a 12-month limited warranty from the original purchase date, covering non-consumable components such as the control board, wiring, internal electronics, hydraulic pump, motor, hydraulic system, structural mechanical parts, platen mounts, and frame components when used under normal conditions. Consumable or wear-and-tear items—including pressure pads, silicone mats, high-temperature sheets, platen covers, laser guides, fuses, power cords, buttons, exterior panels, and parts affected by normal usage, poor maintenance, improper storage, environmental exposure, misuse, accidents, or unauthorized modifications—are not covered. DTFPrinterUSA provides remote support via email, phone, or video, including repair guidance and tutorials when available. Eligible replacement parts covered under warranty are free, but customers must pay all shipping costs; the warranty does not include on-site service, technician visits, or labor.
