Automated DTF Line: 2026 Inline
The Fully Automated DTF LineInside the Smart-Factory Shift
For a few years, the typical DTF setup looked like a converted desktop printer bolted to a manual shaker, with a person hovering at every stage to catch the film, dust the powder, and feed the oven. It worked. It also capped how much any one operator could produce and left quality riding on how tired that operator was at 4 p.m.
The 2026 shift is the automated DTF line: a printer that feeds an inline shaker and dryer, then a cutter, then automatic bagging, with hands touching the work far less often. This is not a gadget upgrade. It is a change in how a shop is laid out, staffed, and scaled. Here is what each automated stage actually removes, and the volume at which an inline setup starts to earn its footprint.
From Converted Desktop to Inline Production
The DIY era solved a real problem: it let small shops start DTF cheaply. The ceiling showed up fast. Every manual handoff is a place where powder gets uneven, film gets touched before it should, curing runs hot or cold, and throughput waits on a human.
An automated DTF line collapses those handoffs into one continuous flow. The printer lays down ink and white, the film travels directly into a powder unit that applies and shakes off adhesive evenly, the same unit cures the powder, and the finished transfer moves on to cutting and packing. A 24 inch printer running in that flow can hold a rate in the neighborhood of 1,000 to 1,200 inches per hour, and the point of automation is that the stages after printing stop being the thing that makes you slow down.
Ink + white laid onto film
Shake + Cure
Auto powder + inline dryer
Cut
Auto contour or trim
Bag + Pack
Auto fulfillment prep
Stage by Stage: What Automation Removes
Printing Plus Inline Shaker and Dryer

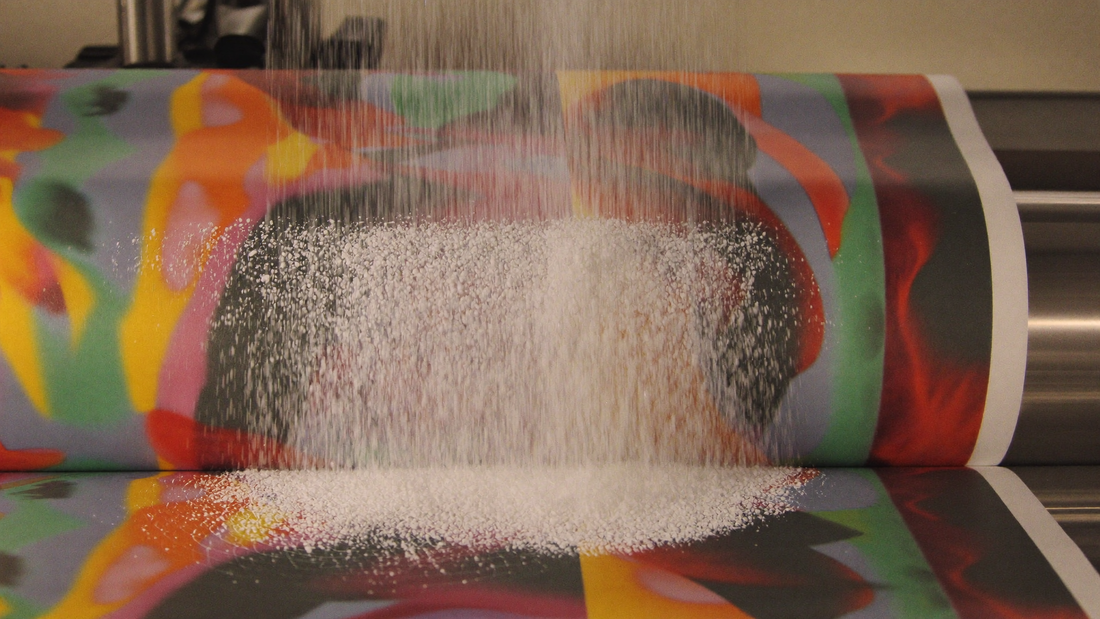

The heart of the line is the printer married to an automatic powder shaker and dryer. Instead of an operator catching each print and hand-dusting powder, the film runs straight from the print zone into the shaker, which coats the design, vibrates off the excess, and passes it into the dryer to cure.
That integration removes the single most error-prone manual step in DTF. Even powder application is the difference between a transfer that peels clean and one that cracks or leaves white gaps, and machine-applied powder is far more consistent than a hand shake. Cure happens in the range of about 115 degrees Celsius on average, though the exact temperature varies with oven design and how fast the line is moving, so speed and heat get tuned together rather than guessed at.
If you are pairing a printer to a curing stage, the DTF printers and dryers built to run inline are what make this handoff seamless.
Automatic Cutting
Once transfers are cured, an automatic cutter separates individual designs or trims gang sheets without an operator feeding each piece by hand. On a manual setup, cutting is a quiet time sink that scales linearly with volume. Automate it and one person stops being tied to a blade for hours a day.
Automatic Bagging and Packing
The last stage most shops overlook is fulfillment. An automatic bagging and packing machine takes cut transfers and preps them for the customer, which matters enormously for shops selling ready-to-press transfers by mail order. Packing is pure labor with zero creative value, so it is one of the best stages to hand to a machine.
One practical caution that does not disappear with automation: the oven runs hot and the process emits fumes that must be vented outside. Automating the line does not change your ventilation obligation, and if anything a faster line producing more transfers per hour makes proper venting more important, not less.
Where the Dryer Choice Sits in All This
If you are not ready for a full inline build, the highest-leverage single upgrade is usually the curing stage, because that is where manual shops bottleneck first. Moving from a hand shake to an automatic shaker and dryer buys back consistency and speed before you touch anything else.
The range of DTF dryers and powder shakers spans smaller units for a growing shop up to high-power 24 inch automatic models built to keep pace with a fast printer.
Start with the curing stage upgrade.
Browse DTF Printer USA's inline-ready dryers and powder shakers, sized to match your printer's throughput.
The Volume Where Automation Pays Off
Automation does not pay for itself at every scale, and it is dishonest to pretend it does. The honest framing is labor and consistency, not magic.
Think about it in terms of where your people are standing. If two or three of your labor hours a day are spent dusting powder, feeding a cutter, and bagging transfers, an inline line converts that recurring labor into fixed equipment.
A second, subtler payoff is quality consistency. Automated powder and cure remove the end-of-shift variability that shows up as cracking and adhesion complaints. Fewer remakes is margin you rarely see on a spreadsheet but feel every week.
Building Toward a Line Without Overbuying
You do not have to buy the whole factory in one purchase. A sensible path is to anchor on the printer and inline curing first, since that pairing delivers the biggest consistency gain, then add automated cutting and bagging as volume justifies each. Start by matching a capable DTF printer to a dryer that can keep up, get that flow tuned and vented correctly, and let real order volume tell you when the next stage earns its space on the floor.
The smart-factory headline is real, but the win underneath it is boring and durable: fewer hands on the work, more consistent transfers, and a shop whose ceiling is set by demand rather than by how many transfers a tired operator can dust by hand.
Frequently Asked Questions
What is an automated DTF line?
It is an inline production setup where a DTF printer feeds an automatic powder shaker and dryer, then a cutter, then automatic bagging and packing, with minimal manual handling between stages. It replaces the converted-desktop-plus-manual-shaker approach with one continuous flow. DTF Printer USA's 24-inch inline-ready configurations are built for shops moving from manual production to automated flow.
Does automation improve DTF quality or just speed?
Both. Machine-applied powder and controlled inline curing are more consistent than hand dusting, which reduces cracking, white gaps, and adhesion complaints. Fewer remakes is often the payoff shops feel first, alongside higher throughput. On a DTF Printer USA line running at 1,000 to 1,200 inches per hour, that consistency compounds across a full production day in ways manual setups cannot match.
At what volume does an automated DTF line pay off?
There is no universal number. The signal is when manual handling, such as dusting powder, cutting, and bagging, has become the reason you cannot take on more orders. If you are turning away volume because your people cannot keep up, automating those stages is worth modeling. Most shops start by pairing the printer with an automatic shaker and dryer, then add automated cutting and bagging as revenue justifies each stage.
Do I still need ventilation with an automated line?
Yes. The oven runs hot and the process emits fumes that must be vented outside regardless of automation. A faster line producing more transfers per hour makes proper venting more important, not less. This applies to every DTF Printer USA dryer configuration, from smaller units up to the 24-inch automatic models built for high-throughput inline production.
Should I automate the whole line at once?
Not necessarily. Many shops start by pairing the printer with an automatic shaker and dryer, since curing is the first bottleneck, then add automated cutting and bagging as order volume justifies each stage. DTF Printer USA carries printers, dryers, and cutters as separate configurations, so you can build the line in stages instead of committing to the whole factory in one purchase.
Build the Line in Stages, Not All at Once
Anchor on the printer and inline curing first, then add automated cutting and bagging as volume justifies each stage. DTF Printer USA carries the full lineup with 12-month limited warranty and US-stocked parts.
