20x24 Hydraulic Rotary Heat Press for Industrial Use

$12,455.00
$15,000.00
$12,455.00
Save $2,545.00
SKU: HR-2024H-6

Model: HeatpressUSA HR-2024H-6
Heating plate size : 20”x 24” (50 x 60 cm)
Power supply: 5250W,220V, 24A
Max Pressure: 120 psi
Dimensions: 95 in (L) × 80 in (W) × 62 in (H)

Model: HeatpressUSA HR-2024H-4
Heating plate size : 20”x 24”
Power supply: 5250W,220V, 24A
Max Pressure: 120 psi
Dimensions: 83 in (L) × 68 in (W) × 61 in (H)"

Platens: 6 Platens

Based in the USA

Secured Payment

Returns & Refunds

Same-Day Shipping

gear

Technical Support

20x24 Hydraulic Rotary Heat Press for Industrial Use

20x24 Hydraulic Rotary Heat Press for Industrial Use

$15,000.00 $12,455.00

20x24 Hydraulic Rotary Heat Press for Industrial Use

$15,000.00 $12,455.00
Platens: 6 Platens

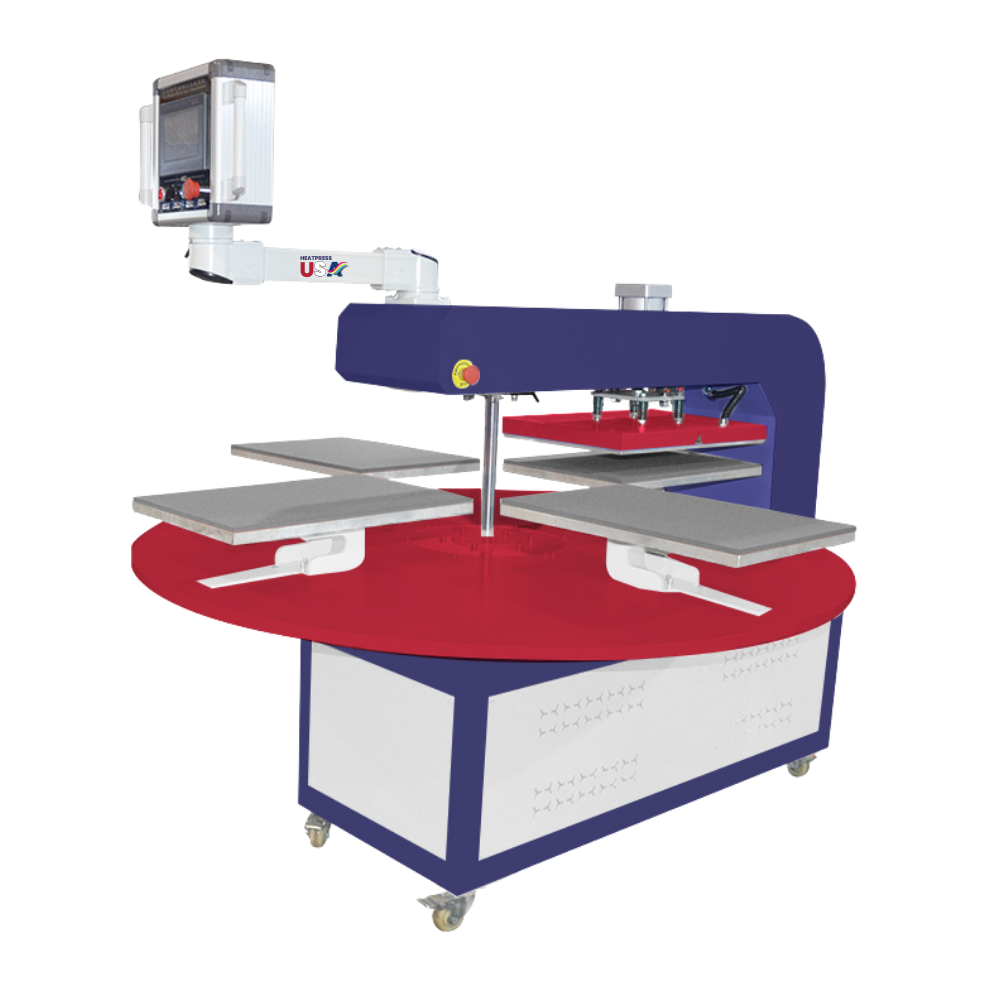

    This 20 x 24 hydraulic heat press with six pallets is designed for industrial-scale apparel production where maximum throughput, continuous operation, and consistent pressure delivery are required. Using a hydraulic oil-pressure mechanism, this system provides stable, uniform pressing force without reliance on compressed air infrastructure.

    The press features a 20 x 24 in (50 x 60 cm) heating plate combined with a six-pallet rotating configuration, allowing multiple garments to be loaded, pressed, and unloaded simultaneously. This layout dramatically reduces idle time between cycles and is ideal for contract printers, large production facilities, and high-output manufacturing environments.

    With a maximum pressure of 115 psi, an extended temperature range up to 399°C, and a programmable time range up to 999 seconds, this model supports demanding applications such as DTF transfers, heat transfer vinyl, sublimation, and other high-temperature or thick-material pressing processes.

    Powered by 220V with a high-capacity heating system, this hydraulic heat press is built for long-term stability and consistent performance in heavy-duty production workflows.

    This 20 x 24 hydraulic heat press with four pallets is designed for industrial-scale apparel production where maximum throughput, continuous operation, and consistent pressure delivery are required. Using a hydraulic oil-pressure mechanism, this system provides stable, uniform pressing force without reliance on compressed air infrastructure.

    The press features a 20 x 24 in (50 x 60 cm) heating plate combined with a six-pallet rotating configuration, allowing multiple garments to be loaded, pressed, and unloaded simultaneously. This layout dramatically reduces idle time between cycles and is ideal for contract printers, large production facilities, and high-output manufacturing environments.

    With a maximum pressure of 115 psi, an extended temperature range up to 399°C, and a programmable time range up to 999 seconds, this model supports demanding applications such as DTF transfers, heat transfer vinyl, sublimation, and other high-temperature or thick-material pressing processes.

    Powered by 220V with a high-capacity heating system, this hydraulic heat press is built for long-term stability and consistent performance in heavy-duty production workflows.

    Model: HeatpressUSA HR-2024H-6

    Mechanism: Hydraulic (oil pressure)
    Heating plate size : 20”x 24” (50 x 60 cm) - 6 pallets
    Max Pressure: 115 psi, 0.8 MPa, 115 lbs/in²
    Power supply: 5250W,220V, 24A
    Temperature Range: 0-399℃
    Time Range: 0-999S

    Machine Weight: 1900 lbs
    Machine Dimensions: 95 in (L) × 80 in (W) × 62 in (H)

    Package Weight: 1965 lbs
    Package Dimensions: 93 in (L) × 37 in (W) × 65 in (H)

    Model: HeatpressUSA HR-2024H-4

    Mechanism: Hydraulic (oil pressure)
    Heating plate size : 20”x 24” - 4 pallets
    Max Pressure: 115 psi, 0.8 MPa, 115 lbs/in²
    Power supply: 5250W,220V, 24A
    Temperature Range: 0-399℃
    Time Range: 0-999S

    Machine Weight: 1190 lbs
    Machine Dimensions: 83 in (L) × 68 in (W) × 61 in (H)

    Package Weight: 1235 lbs
    Package Dimensions: 72 in (L) × 36 in (W) × 66 in (H)

    HeatpressUSA HR-2024H-4
    Backed by a 12-month limited warranty
    24/7 U.S.-based phone and email support

    Warranty & Important Details

    The Heat Press includes a 12-month limited warranty from the original purchase date, covering non-consumable components such as the control board, wiring, internal electronics, hydraulic pump, motor, hydraulic system, structural mechanical parts, platen mounts, and frame components when used under normal conditions. Consumable or wear-and-tear items—including pressure pads, silicone mats, high-temperature sheets, platen covers, laser guides, fuses, power cords, buttons, exterior panels, and parts affected by normal usage, poor maintenance, improper storage, environmental exposure, misuse, accidents, or unauthorized modifications—are not covered. DTFPrinterUSA provides remote support via email, phone, or video, including repair guidance and tutorials when available. Eligible replacement parts covered under warranty are free, but customers must pay all shipping costs; the warranty does not include on-site service, technician visits, or labor.

    The Heat Press includes a 12-month limited warranty from the original purchase date, covering non-consumable components such as the control board, wiring, internal electronics, hydraulic pump, motor, hydraulic system, structural mechanical parts, platen mounts, and frame components when used under normal conditions. Consumable or wear-and-tear items—including pressure pads, silicone mats, high-temperature sheets, platen covers, laser guides, fuses, power cords, buttons, exterior panels, and parts affected by normal usage, poor maintenance, improper storage, environmental exposure, misuse, accidents, or unauthorized modifications—are not covered. DTFPrinterUSA provides remote support via email, phone, or video, including repair guidance and tutorials when available. Eligible replacement parts covered under warranty are free, but customers must pay all shipping costs; the warranty does not include on-site service, technician visits, or labor.
