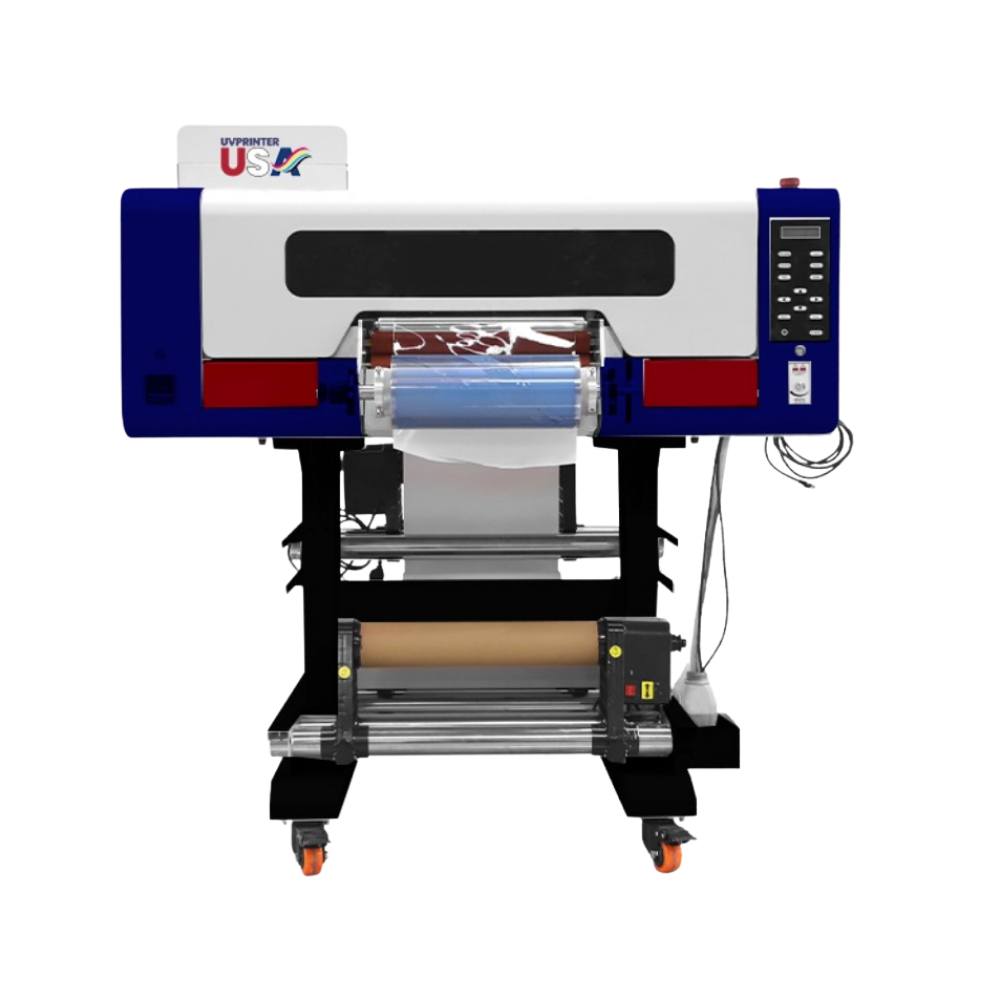

12 Inch Triple-Head UV DTF Printer for Small Businesses

12 Inch Triple-Head UV DTF Printer for Small Businesses
$10,555.00
$12,500.00
$10,555.00
Save $1,945.00
SKU: UV-12-3

Model: UVPrinterUSA UV-12-3
Printhead: 3PCS EPSON I1600-U1
Printing Width: 12"
Productivity:
• 6-PASS: 60 ft²/h
• 8-PASS: 40 ft²/h
Dimension: x

Frequently Bought Together
Total with selected add-ons:

Based in the USA

Secured Payment

Returns & Refunds

Same-Day Shipping

gear

Technical Support

12 Inch Triple-Head UV DTF Printer for Small Businesses

12 Inch Triple-Head UV DTF Printer for Small Businesses

$12,500.00 $10,555.00
12 Inch Triple-Head UV DTF Printer for Small Businesses

12 Inch Triple-Head UV DTF Printer for Small Businesses

$12,500.00 $10,555.00

    Description

    This 12 inch UV printer is designed for professional production environments that require stable UV output, layered color capability, and consistent throughput. Equipped with three Epson I1600-U1 UV printheads, the system delivers precise ink placement and reliable performance across UV film workflows.

    The printer supports CMYK, White, and Varnish, enabling layered printing, opaque white underbases, and gloss effects for premium finishes. With a 12 inch (30 cm) printing width, it is well suited for medium-format UV applications such as decorative films, specialty graphics, and custom product surfaces.

    Operating at up to 5,6 m² (60 ft²) per hour, this UV printer balances speed and quality for short- to mid-volume production runs. Designed for UV A and B type films, it integrates cleanly into workflows focused on flexible UV media rather than rigid flatbed substrates.

    Built for controlled production environments, the machine operates on 110V power and maintains stable output within standard shop temperature and humidity ranges.

    Specifications

    Model: UVPrinterUSA UV-12-3

    Printhead: EPSON I1600-U1
    Quantity of printhead: 3 pcs
    Printing Color: CMYK+W+V
    Color management: ICC
    Resolution:​ Up to 1440 DPI (Ultra High Precision)

    Printing Speed:
    • 6-PASS: 60 ft²/h
    • 8-PASS: 40 ft²/h

    Printing Width: 24" (60cm)
    Printable material: UV A,B type film
    RIP Software: Maintop+Hosonsoft
    Temperature: 20-35°C
    Humidity: 45-60%


    Power Supply:​ 110V

    Machine Weight: 300 lbs
    Machine Dimensions: X

    Package Weight: 342 lbs
    Package Dimensions: 53 in (L) × 30 in (W) × 30 in (H)

    Warranty & Important Details

    DTFPRINTERUSA offers a limited 12-month warranty for this product, covering non-consumable parts under normal use. Consumable components — including printheads, printhead covers, dampers, capping stations, wiper blades, and filters — are not covered by this warranty.

    The use of any ink, film, powder, or other consumable supplies not sold or distributed by DTFPRINTERUSA will void the warranty in full. Please note that all sales of this equipment are final, but the warranty exists to support you in the event of a qualifying hardware issue. Warranty coverage begins on the original date of purchase.
