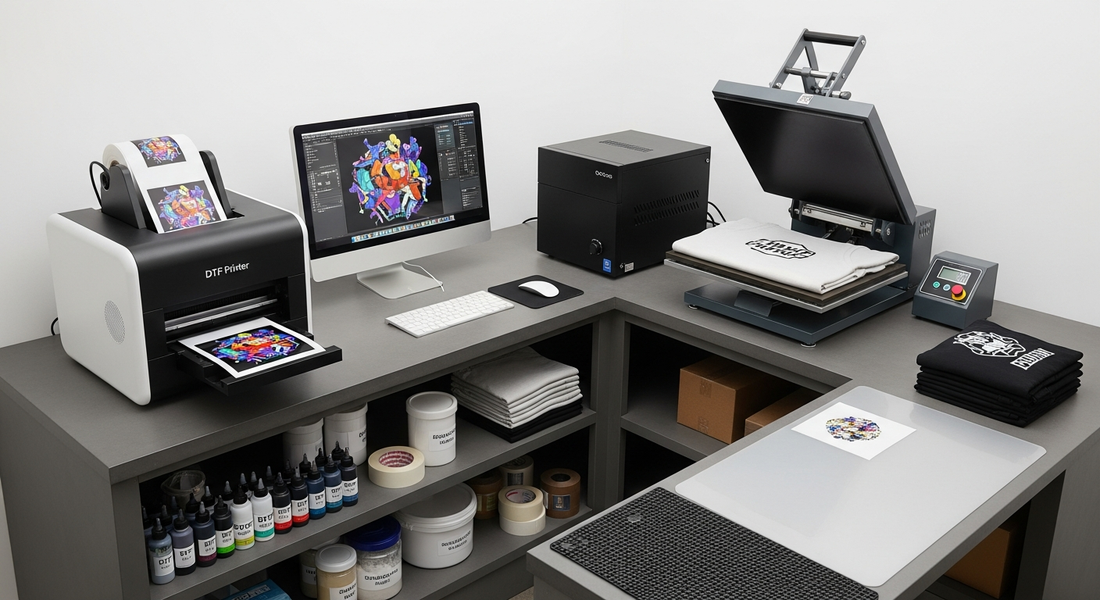

Setting Up a DTF Print Shop in 200 Square Feet: The Smallest Viable Production Layout

The 200-square-foot floor plan is the smallest viable DTF print shop layout for actual production work. Below 200 square feet, the workflow loops collide and the equipment cannot run safely. Above 400 square feet, the shop has comfortable working room for expansion. The 200-to-400 square foot range is where most first-DTF-shop operators set up: a converted garage, a basement room, a small commercial unit, or a rented workspace in a maker-space facility.

This is the working floor-plan guide for a 200-square-foot DTF shop, layout-by-layout.

The Five Functional Zones Every DTF Shop Needs

Every working DTF shop has five distinct functional zones. The 200-square-foot layout puts each zone in a specific physical location and the workflow loops connect them in a predictable pattern.

1. Print zone: the DTF printer, the computer running the RIP software, the ink supply storage
2. Powder + cure zone: the powder shaker (or the integrated powder area in an all-in-one printer), the curing oven, and the immediate-post-print workspace
3. Press zone: the heat press, the substrate prep surface, the alignment and quality-check workspace
4. Storage zone: blank apparel inventory, finished transfer inventory, packaging materials
5. Shipping zone: the order-prep table, the printer for shipping labels, the outbound-package staging area

In a 200-square-foot space, each zone gets roughly 40 square feet. The zones must be arranged in a workflow loop that does not require operators to backtrack or cross paths during production.

The U-Shape Workflow That Fits 200 Square Feet

The optimal 200-square-foot layout uses a U-shaped workflow. The operator enters the shop from one end of the U, moves through each functional zone in order, and exits at the other end with finished, packaged orders ready for shipping.

The five zones arranged in U-shape order:

1. Print zone (top of one leg of the U): the DTF printer plus the computer station
2. Powder + cure zone (turning the corner of the U): the powder shaker or the integrated all-in-one zone, plus the cure-station tray work
3. Press zone (bottom of the U): the heat press and substrate alignment workspace
4. Storage zone (turning the other corner): vertical shelving for blanks plus finished-product staging
5. Shipping zone (top of the other leg): packaging table plus label printer plus outbound staging

This layout means the operator never crosses their own production loop. Each step physically moves the work product forward to the next zone, and finished orders end up at the door for outbound shipping.

Equipment Sizing for 200 Square Feet

Equipment selection determines whether the 200-square-foot footprint works. The minimum-footprint equipment set for a working DTF shop:

A 12-inch DTF printer with integrated workflow

A desktop-class DTF printer like the 12-inch DTF printer with dual Epson i1600 printheads fits a roughly 36-inch x 24-inch table footprint. Plus the supply tray, the computer, and the ink-storage area, the print zone needs approximately 50-60 square feet.

For shops that want to compress the print + powder + cure zones into one footprint, the 16.5-inch all-in-one DTF printer with integrated powder shaker eliminates the separate powder station entirely. This frees up roughly 20 square feet for other zones.

A standard clamshell heat press

A 16x20 standard clamshell heat press fits a roughly 30-inch x 24-inch table footprint. Plus the substrate prep workspace immediately adjacent to it, the press zone needs approximately 40-50 square feet.

For shops focused on smaller-format prints (under 12x12 inches), a smaller clamshell press fits a more compact footprint.

Vertical shelving for storage

Blank apparel inventory and finished transfer storage should use vertical shelving rather than horizontal table space. A 6-foot-tall shelving unit holds far more inventory than a table of equivalent footprint.

For 200-square-foot shops, two 6-foot vertical shelving units (one for blanks, one for finished inventory) handle the storage zone in approximately 30 square feet of floor footprint.

A small office table for the shipping zone

The shipping zone needs a 4-foot or 5-foot table, a small label printer, and storage for packaging materials. Approximately 30-40 square feet.

The Ventilation Reality

DTF printing produces no significant fumes during the print and powder application stages. The curing stage (whether through an integrated curing chamber in an all-in-one printer or through a separate curing oven) does release low-level VOCs from the heated TPU adhesive that should not accumulate in a closed space.

The 200-square-foot shop needs at minimum:

• One window with intermittent ventilation, opened during cure cycles
• A small intake or exhaust fan to maintain air circulation
• For shops in fully enclosed basements with no window access, a dedicated ventilation duct to outside air

For shops running production above 4 hours per day, a more robust ventilation setup is the right investment. Below that production volume, a standard residential ventilation pattern is typically sufficient.

The Electrical and Power Setup

The combined DTF print, powder cure, and heat press equipment in a 200-square-foot shop pulls meaningful electrical load. Most shops can run on standard residential 120V circuits, but the load needs to be distributed across multiple circuits rather than concentrated on one.

The minimum electrical setup:

• The DTF printer on one dedicated circuit
• The heat press on a separate circuit (heat presses pull significant current during the heat-up cycle)
• The curing oven on a third circuit if running a separate cure station
• The computer, label printer, and shipping zone on a fourth circuit

For shops setting up in a converted garage or basement, an electrician's review before equipment installation prevents the breaker-tripping issue that plagues many new DTF shops in their first production week.

The Climate Control Reality

DTF white ink chemistry is temperature-sensitive. Production runs in climate-extreme spaces (a garage with no heating in January, an attic with no cooling in August) see increased ink-clogging rates and shorter printhead lifespan.

The minimum climate control for a 200-square-foot DTF shop:

• Temperature maintained in the 65-80°F range during production
• Humidity maintained below 60%
• No direct sunlight on the printer or ink storage

For shops running production daily, climate control is a routine operational requirement. Use a portable AC unit for summer cooling and a small space heater for winter heating if the shop space does not have central HVAC.

The Cost of Doing It Wrong

Operators who skip the planning and just "set up the equipment somewhere" run into the same predictable failures across their first six months:

• Workflow zones overlap and operators waste time backtracking across the shop
• Inadequate ventilation accumulates VOCs that affect health and ink chemistry stability
• Inadequate climate control breaks white ink and shortens printhead life
• Inadequate storage forces inventory to pile on production surfaces, slowing the workflow
• Inadequate electrical distribution trips breakers during production runs

The first three months of operation are when these issues compound. By month six, the shop either fixes the layout problems or accepts permanently slower production.

The Path to 400 Square Feet

Most DTF shops outgrow 200 square feet within their first year of consistent production. The signs that the upgrade is needed:

• Storage inventory consistently overflows the shelving capacity
• Workflow zones feel cramped during normal production
• The shop owner cannot have a second operator help during peak orders
• Bulk orders (50+ shirts) cannot stage finished inventory before shipping

The 400-square-foot expansion typically doubles the storage zone and adds a second production station (either a second heat press or a larger DTF printer in the DTF Printer USA collection).

200 square feet is the floor. Plan for 400. The shops that build the 200-square-foot layout correctly the first time are the ones that expand into 400 square feet without losing production days during the move.
