DTF Print Shop Floor Layout: A Practical Setup Guide
Most people setting up a DTF print shop spend more time choosing equipment than planning where it goes. That is a mistake. Your DTF print shop floor layout can affect throughput almost as much as your equipment choices. A room where airflow from the powder shaker or dryer moves toward your inkjet heads, or where finished transfers stack up on the wrong side of the press, will cost more in rework and lost time than a slower machine ever would.
This guide covers the four functional zones every DTF operation needs, three layout configurations suited to different spaces, and a few planning details that experienced operators wish they had known before the first machine arrived.

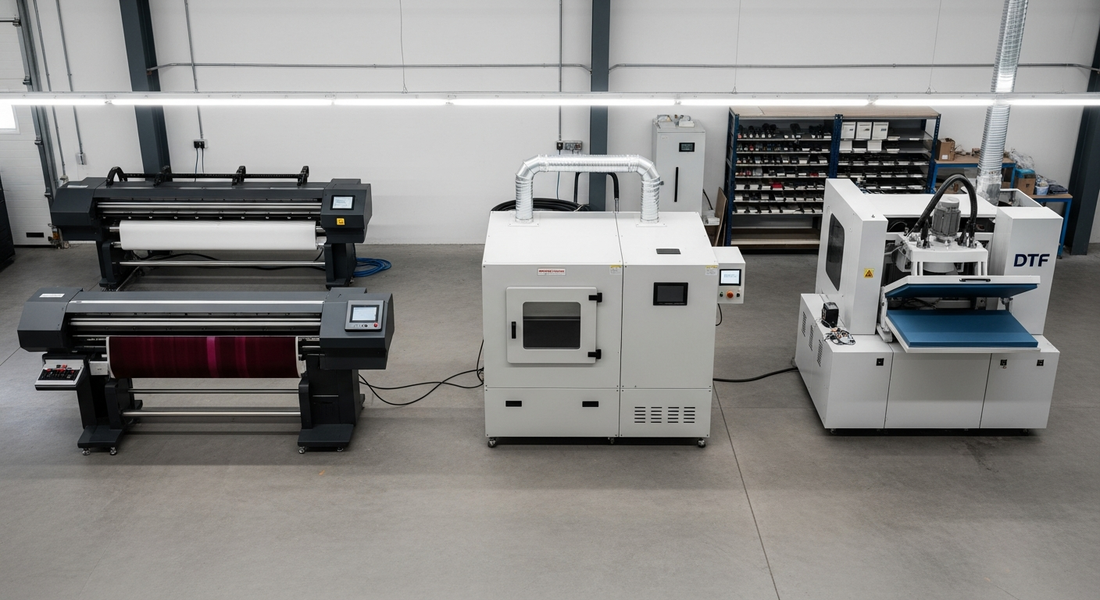

The Four Functional Zones in a DTF Print Shop
Most apparel-focused DTF workflows follow this sequence: design and film output, powder application and curing, heat pressing, and finishing or packaging. Your floor plan should make that sequence physically obvious. When materials move in one direction through clearly separated zones, operators stay in their lanes and bottlenecks are easy to identify.
Zone 1: The Print Station
Your DTF printer is the starting point of every job. Position it on a stable, level surface where vibration from other equipment will not affect printhead registration during multi-pass runs. Keep it away from direct sunlight and heat swings, which can affect ink behavior, printer stability, and nozzle health on long gang sheet runs.
Place your design workstation near the printer. Operators reviewing gang sheet color output need to catch problems before the run cures. A design station at the press end means expensive corrections after full runs have already processed through the dryer.
DTF printers like the 24-inch DTF printer with Epson I3200 printheads run automatic cleaning cycles and route waste ink through an outlet line. Finalize the printer's location before routing power, network, ventilation, and waste-ink lines or tanks. Moving a fully connected printer is a half-day project nobody wants to do twice.
Zone 2: The Powder and Cure Station
The powder shaker dryer is the most underplanned station in most shops. It generates heat, may release fine powder dust, and may require exhaust or filtration depending on the model and local requirements. All three affect what you place next to it.
Position the dryer so its exhaust moves away from the printer. Airborne DTF powder near inkjet heads can increase contamination and clogging risk over time; shops that discover this after the fact spend hours on printhead maintenance that better placement would have prevented.
Place your powder waste collection point near the dryer. A waste bin on the printer side creates a cross-contamination path between the ink system and the powder station. That mistake shows up in head replacements, not a single obvious event.
The DTF printers and powder shaker dryers at DTF Printer USA are sold as matched systems because throughput compatibility matters at the equipment level. A printer that consistently outpaces the dryer creates a capacity bottleneck that layout alone cannot fully solve.
Zone 3: The Heat Press Station
The press station is where the most direct labor happens. Operators stand here for most of their shift, so ergonomics matter as much as footprint.
Hydraulic, pneumatic, clamshell, swing-away, drawer, and multi-station presses can all require different clearance and operator access. Leave room behind and to each side for staging incoming transfers and stacking finished garments. Ideally, the operator should be able to complete a press cycle with minimal turning, reaching, or crossing traffic.
Heat presses run hot for hours. Where possible, place the press station where heat can be exhausted or managed without disrupting workflow; in summer, ambient heat can compound workstation temperature significantly.
If your operation runs multiple presses side by side, each press needs independent operator access. Reaching across a running press to move transfers is a safety issue, not just an ergonomics concern.
The heat press models at DTF Printer USA include hydraulic units with industrial platens. Footprint varies significantly by platen size and mechanism. Use your actual equipment dimensions when planning the press zone.
Zone 4: The Prep and Finishing Station
This zone handles garment staging before the press and packaging after. Keep packaging and finished-goods supplies in finishing; keep DTF film near the printer and DTF transfer powders near the powder station in sealed containers. Mixing all consumables in finishing creates cross-contamination paths between zones.
Give the finishing station enough table surface to sort and fold without piles backing into the press area. If your shop bags finished goods here, add shelving for packaging supplies rather than improvising after production starts.
Layout Configurations: Linear, L-Shape, and U-Shape
Linear Layout
Works in long, narrow rooms. Printer at one end, dryer next, press at the far end, finishing at the exit. Materials move in one direction with no backtracking. For transfer-only shops, the press zone may be replaced by inspection, cutting, rolling, and packaging. The trade-off is walking distance in a single-operator setup.
L-Shape Layout
Suits most small to mid-volume shops. Printer and dryer run along one wall, press and finishing turn the corner. The operator can pivot between dryer output and press intake without crossing the room. This is the most common configuration because it balances flow with operator efficiency.
U-Shape Layout
Works for multi-operator teams. The printer anchors one arm, the press the other, and the dryer runs along the back wall. Two or three operators can work simultaneously without blocking each other.
Map your actual square footage, door positions, and electrical panel locations before committing to any configuration. The wrong layout for your space is worse than any particular choice.
Planning equipment for your new layout?
Browse our matched DTF printer and dryer systems sized for small, mid, and industrial-volume shops.
Ventilation: Plan Around the Constraints You Have
Specific ventilation requirements depend on local building code, your existing HVAC system, and your dryer model's exhaust specs. What your floor plan controls is where the exhaust can go.
Consult your dryer's documentation for exhaust specs and your ventilation installer for code compliance. The floor layout determines which options are available given your existing duct positions. Set that constraint early.
The Station Most Shops Add Too Late: The Rework Area
Production-volume shops generate failed transfers. Press cycles run slightly under pressure, cured sheets develop powder voids, new film rolls cause peel timing issues. You need a dedicated rework area that does not pull the primary press line offline.
Even small shops benefit from planning a rework area; a secondary press becomes useful as volume grows. If budget and space allow, a secondary press can prevent rework from stopping the main line. Shops that build this in from the start do not lose a press cycle every time a correction comes through. Shops that add it later are usually squeezing it into whatever space remains.
Conclusion
Getting your DTF print shop floor layout right before equipment arrives saves weeks of rearranging once production starts. Map your four zones, match the configuration to your space and team size, plan for ventilation early, and reserve room for rework from day one. When you are ready to spec equipment, browse the DTF printers and powder shaker dryers at DTF Printer USA. Questions about which equipment fits your planned footprint? Contact the team directly.
Frequently Asked Questions
What is the best layout shape for a DTF print shop?
L-shape layouts work well for most small to mid-volume shops because they let the printer, dryer, and press form a natural production flow without operators crossing the room. Linear layouts suit narrow spaces with a single operator. U-shapes support multi-operator teams running simultaneous tasks.
How should I position my DTF printer relative to the powder shaker dryer?
Position the dryer downstream of the printer with its exhaust directed away from the printhead side. Airborne DTF powder near an inkjet printer can increase contamination and clogging risk over time. The film path should move from printer to dryer without the operator carrying film through active press or finishing areas.
What clearance does a heat press need in a print shop?
Clearance requirements depend on your specific press model. Hydraulic, pneumatic, clamshell, swing-away, drawer, and multi-station presses all have different platen motion ranges and access requirements. Check your press documentation for manufacturer-recommended operating clearances, and add working room for the operator on the front and both sides.
Should my design workstation be near the printer or the press?
Near the printer. Operators reviewing gang sheet color output need to catch problems before the run cures, not after. A design station at the press end of the shop means costly corrections after full runs have already processed through the dryer.
What is a rework station and does a small DTF shop need one?
A rework station is a secondary heat press, or at minimum a dedicated rework area, used to correct failed or rejected transfers without stopping the main press line. Even small shops benefit from planning the space for one; a secondary press becomes more valuable as production volume grows.
