DTF Cutter Machine: What It Does and When Your Shop Needs One

What a DTF Cutter Machine Does

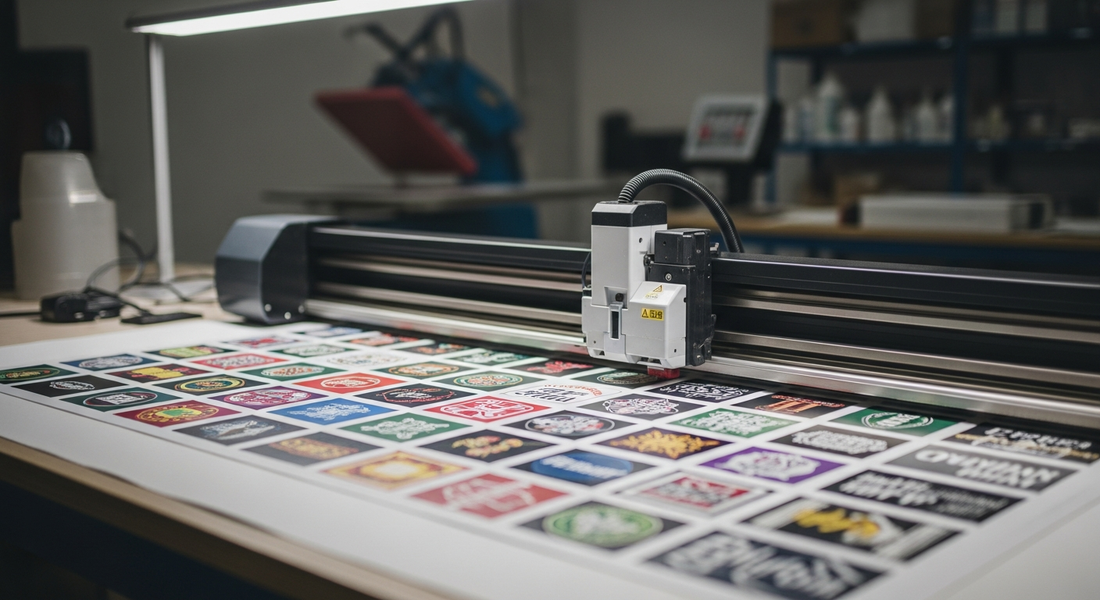

A DTF cutter machine is a cutting plotter that separates printed transfers from gang sheets using a motorized blade controlled by software. After a gang sheet travels through the print cycle and the powder shaker dryer, the finished transfers still need to be cut into individual pieces before they go to the heat press station.

The cutter achieves this by reading optical registration marks printed alongside your designs on the gang sheet. These small corner marks, generated by your RIP software, tell the machine's optical sensor where each design is positioned on the film. Once the cutter locates those marks, it follows a contour cut path around each design rather than making straight lines across the sheet. This allows the blade to trace complex shapes including rounded edges, character outlines, and irregular artwork borders.

There are two common cut types used in DTF workflows. A kiss-cut makes a controlled partial cut through the transfer film stack without fully separating the piece from the backing or carrier, leaving a handleable border around each design. That border gives press operators something to grip without touching the adhesive side of the design. A through-cut separates the transfer completely from the gang sheet. Kiss-cuts are common when transfers are sorted and stored before pressing; through-cuts suit operations where transfers move directly from the cutter to the press.

Where the Cutter Sits in the DTF Workflow

The cutter is the third station in a complete DTF production line:

Position matters here. The cutting step depends entirely on the print step executing correctly. If your RIP generates registration marks that are too small for the cutter's optical sensor to read, or if film tension through the printer causes subtle skew in the printed sheet, the cutter will lose its alignment. Clean, consistent printing upstream is what makes precise cutting downstream reliable.

Manual Cutting vs. a Dedicated Cutter Machine

Low-volume shops often start without a cutter. A straight trimmer handles simple rectangular transfers well, and the time spent cutting by hand is manageable when overall output is modest.

That calculus changes as volume increases. A shop running DTF printers and powder shaker dryers at production capacity cannot sustain manual cutting without dedicating real labor hours to it. The time a person spends trimming is time not spent operating presses, fulfilling orders, or handling customer work. At scale, manual cutting becomes the bottleneck that holds back every other station.

Non-rectangular designs make manual cutting impractical at any volume. A round logo, a die-cut name badge shape, or an irregular character outline cannot be trimmed cleanly by hand faster than a cutter executes it in seconds. These jobs either require the cutter or get limited to rectangular output, which constrains the work you can take on.

What to Look for in a DTF Cutter Machine

Matching the Cutter to Your Production Volume

A single-operator shop with one press station needs a different cutter than a multi-shift print shop with several press operators running simultaneously. Look at your current gang sheet output per day and how quickly that number is growing. A cutter that handles current volume with room to scale reduces the cost of re-equipping later.

Shops that have added UV DTF printing alongside standard DTF transfers may find that the same cutter handles both applications with adjusted settings. The same cutter may handle both DTF and UV DTF workflows if the media width, blade, force range, and optical registration system are compatible across the two film types. Verify these specifications before assuming a single machine can serve both workflow tracks.

Getting Clean Cuts Consistently

Three sources cause most cutting errors in DTF shops: incorrect registration mark settings in the RIP, inconsistent film tension on the media rollers, and a worn or mis-angled blade.

Start with registration marks. Test your RIP's mark output on scrap film before committing to a production gang sheet. Marks that are too small or positioned too close to design edges give the sensor less reliable targets. Increasing mark size is usually the first fix when the optical sensor loses registration on a new film type.

Tension matters on the feed side. Film that wrinkles or goes slack as it moves through the cutter produces position errors in the cut path. Use the cutter's media tension controls to maintain consistent feed across the full sheet width, especially when running longer gang sheets with many small designs.

Your cutter's output quality also depends on what goes into it. Consistent DTF film rolls and well-calibrated heat press machines downstream keep the full line producing reliably.

Building Out the Rest of Your DTF Setup

A cutter completes the middle of a DTF production line, but it performs only as well as the equipment around it. If you are still building out your shop or looking to upgrade existing machines, the logical starting point is the print and cure stations that feed your cutter. Browse the full selection of DTF printers and powder shaker dryers and heat press machines to find the combination that matches your production volume and growth plans.
