Direct-to-Film (DTF) printing has taken the custom apparel world by storm, offering a versatile and high-quality solution for creating vibrant, durable designs on a wide range of fabrics. But what exactly is going on inside that impressive machine? Understanding the anatomy of a DTF printer is key to maximizing its potential, ensuring its longevity, and troubleshooting with confidence. This is key to mastering the entire DTF printing process, from digital design to the final heat press. This guide will provide a detailed mechanical breakdown of every major component, explaining its function and importance in the printing process.

The Digital Command Center: Printhead, Mainboard, and Software

Before any ink ever touches the film, a series of digital processes must take place. These three components work in concert to translate your design into a printable file. Think of this digital trio as the brain of your operation, meticulously planning and mapping out every detail of your design. The accuracy and synergy between these parts lay the groundwork for a high-quality print, ensuring that what you see on your screen is precisely what gets printed.

The Printhead: The Heart of the Printer

The printhead is arguably the most critical and delicate component of a DTF printer. It's responsible for precisely jetting microscopic droplets of inks onto the DTF film. The quality of your printhead directly impacts the resolution, color accuracy, and overall sharpness of your final design. Most modern DTF printers utilize piezoelectric printheads, which use electrical charges to flex and propel ink droplets.

Key Functions:

• Ink Deposition: Sprays CMYK and white inks with incredible precision.
• Resolution: The number and size of nozzles determine the print's dots per inch (DPI), affecting its clarity and detail.

Pro-Tip: Regular cleaning and maintenance of the printhead are vital to prevent clogs and ensure consistent print quality. Using high-quality DTF Printer USA inks can also significantly extend the life of your printhead.

The Mainboard: The Central Command Center

If the printhead is the heart, the mainboard is the brain of the DTF printer. This circuit board is the central processing unit that receives data from the RIP software and sends commands to all the other components, including the printhead, motors, and ink system. It orchestrates the entire printing process, ensuring every part works in perfect harmony.

Key Functions:

• Data Processing: Interprets the print file from the RIP software.
• Component Control: Manages the movement of the printhead, the firing of the ink, and the operation of the various motors and pumps.

Raster Image Processor (RIP) Software: The Digital Interpreter

RIP software is a specialized program that bridges the gap between your design file and the printer. It converts your vector or raster image into a "raster" or bitmap file, which is a dot-by-dot map that the printer can understand. This software is crucial for color management, white ink layer generation, and overall print quality control.

Key Functions:

• Color Management: Ensures accurate color reproduction from screen to print.
• White Ink Generation: Automatically creates the white underbase layer necessary for printing on dark garments.
• Print Settings Control: Allows you to adjust ink levels, resolution, and other print parameters.

Keeping the Colors Flowing: The DTF Ink Delivery System

A consistent and reliable flow of ink is essential for flawless prints. The ink delivery system is a network of components designed to transport ink from the cartridges to the printhead smoothly and efficiently. Properly managing this flow prevents common issues like air bubbles and inconsistent pressure that can ruin a print. This is especially true for white ink, which requires constant circulation to prevent the pigments from settling and causing clogs.

Ink Cartridges/Bottles

This is where your CMYK (Cyan, Magenta, Yellow, Black) and white inks are stored. DTF printers typically use bulk ink systems with larger bottles to accommodate the high volume of ink used, especially the white ink.

Dampers

Dampers are small reservoirs that sit between the ink lines and the printhead. They play a crucial role in maintaining consistent ink pressure and filtering out any air bubbles or debris before the ink reaches the delicate printhead nozzles. Think of them as a final quality control checkpoint for your ink.

Ink Pumps and Motors

These components are the workhorses of the ink system. Ink pumps are responsible for moving the ink from the cartridges or bottles through the ink lines to the dampers. Various motors control the movement of the printhead carriage and the film feeding mechanism.

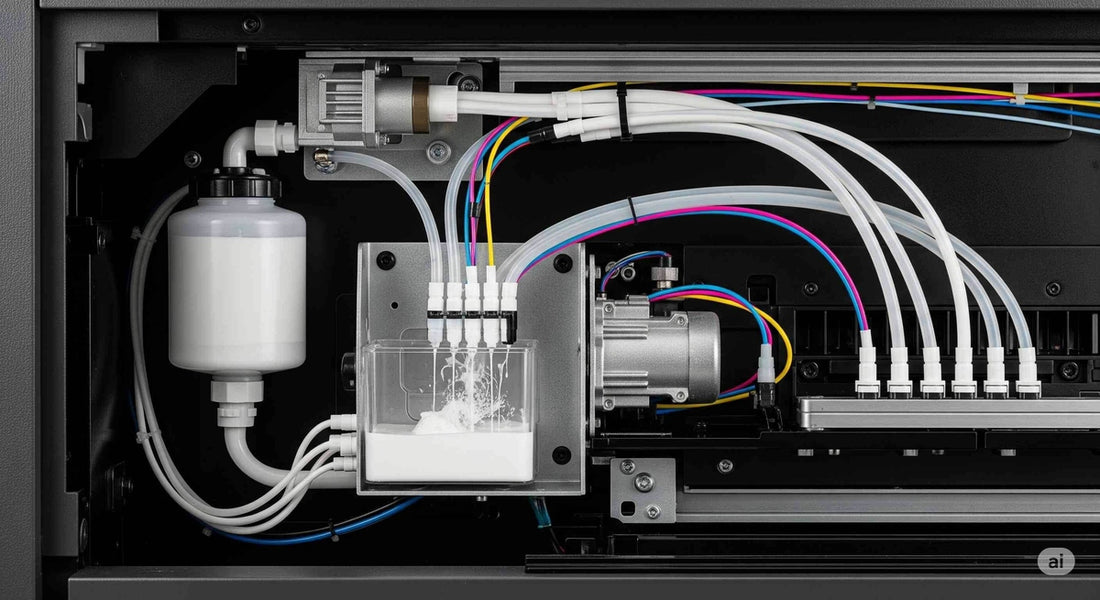

White Ink Circulation System

White ink is notoriously prone to settling and clogging due to the heavier pigments it contains. A white ink circulation system is a vital component that continuously agitates and circulates the white ink, preventing the pigments from settling and ensuring a consistent, bright white underbase. This system often includes a stirring motor in the ink tank and a circulation pump. This continuous movement is critical for the longevity of your DTF printer.

A Clean Printer is a Happy Printer

To ensure your DTF printer operates at peak performance, a dedicated set of components works to keep the printhead clean and in optimal condition. Using high-quality DTF supplies, including inks and powders, is crucial for the optimal performance of these intricate components.

The Capping Station

When the printer is not in use, the printhead rests on the capping station. This component creates an airtight seal around the nozzles to prevent them from drying out and getting clogged with dust or debris. It also plays a role in the printhead cleaning cycles by drawing out excess ink.

The Wiper Blade

The wiper blade is a small, flexible blade that physically wipes the surface of the printhead to remove any excess ink, dust, or fibers that may have accumulated. This simple yet crucial action ensures that the nozzles are clear and ready for the next print job.

Bringing it all Together: The DTF Finishing Process

Once the design is printed onto the DTF film, it's not yet ready to be transferred. It needs to go through a powdering and curing process.

Inside the DTF Powder Shaker

The printed film passes through a powder shaker, which evenly coats the wet ink with a special adhesive powder. This powder is what will ultimately bond the design to the fabric. The shaker mechanism ensures a consistent and even layer of powder for a smooth and durable finish. Using high-quality powders is essential for a strong bond. Check out our selection of DTF powders for optimal results.

The Curing Oven's Job

After being coated in powder, the film moves through a curing oven. The heat from the oven melts the adhesive powder, creating a smooth, even layer of adhesive on top of the ink. This process prepares the transfer for the final step: heat pressing.

The Role of the Heat Press

The final piece of the puzzle is the heat press. The cured DTF transfer is placed on the garment, and the heat press applies a specific temperature and pressure for a set amount of time. This activates the adhesive and permanently bonds the design to the fabric.

Questions About DTF Equipment & Techniques

What is the most important component of a DTF printer?

The printhead is widely considered the most critical component. Its quality directly affects print resolution, color accuracy, and overall detail. Proper maintenance of the printhead is essential for the longevity and performance of your DTF printer.

Why is a white ink circulation system so important in a DTF printer?

White ink contains heavier pigments that can easily settle and cause clogs in the ink lines and printhead. A white ink circulation system continuously agitates and moves the ink to prevent this, ensuring consistent, bright white prints and protecting the printer from damage.

Can I use any ink in my DTF printer?

It is highly recommended to use high-quality inks specifically formulated for DTF printing. Using a trusted brand ensures compatibility with your machine and helps prevent issues like clogging, which can damage the printhead.

What is the purpose of the DTF powder?

The DTF adhesive powders act as the bonding agent between the printed design and the fabric. After being applied to the wet ink, it's melted in the curing oven to create a smooth adhesive layer that is activated during the heat pressing process.

How often should I perform maintenance on my DTF printer?

Regular maintenance is crucial. Daily tasks should include checking ink levels and performing nozzle checks. More thorough cleaning of components like the capping station and wiper blade should be done weekly. Always refer to your printer's manual for specific maintenance schedules.
