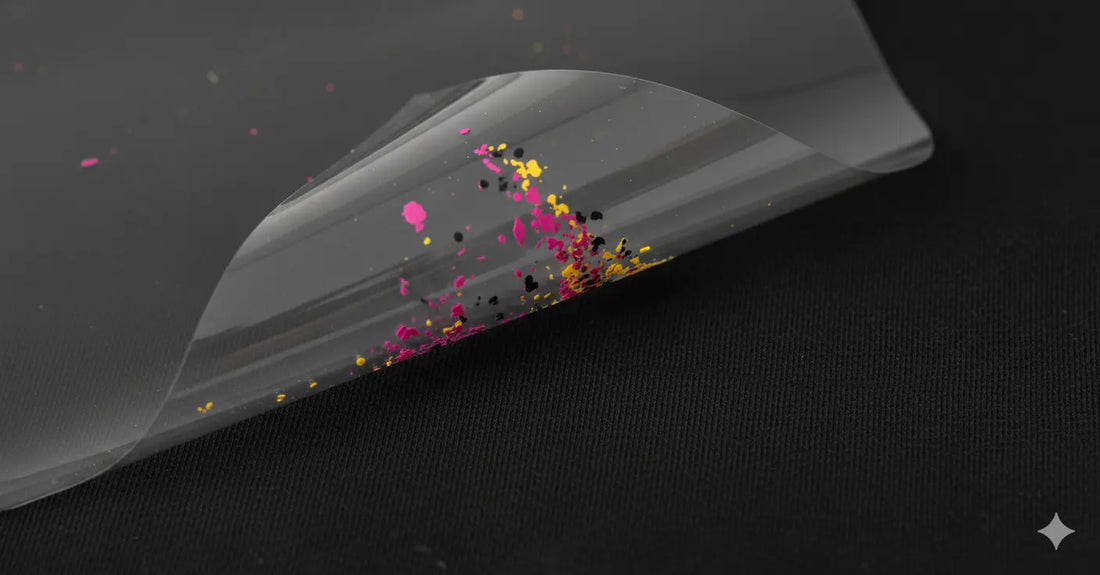

What's in a Peel? The Material Science Behind DTF Film Layers and Adhe

There are few moments in the DTF printing process as satisfying as the peel. It’s that final, revealing step where a smooth, steady pull lifts the carrier film away, unveiling a flawless, vibrant design perfectly bonded to the garment. It feels like magic. When the peel goes wrong, when it resists, tears, or leaves fragments of your design behind, it’s a moment of pure frustration that can bring your production to a halt. This success or failure isn't magic or luck; it’s a direct result of sophisticated, and often invisible, material science.

To most users, the DTF film is simply a transparent carrier sheet, a disposable commodity in the printing workflow. But in reality, it is a highly engineered, multi-layered product where every micron of coating serves a critical purpose. The chemistry of its surface, the stability of its base, and its thermal properties are all precisely tuned to interact with your inks, powders, and heat press. Not all films are created equal, and the difference between a premium film and a low-quality alternative is written in the language of polymer chemistry.

Understanding the science behind what’s in that peel is the key to mastering your craft. It transforms you from a simple operator into an informed technician. It empowers you to troubleshoot issues with precision, select the right consumables for your specific needs, and appreciate the incredible technology that makes this whole process possible. So, let’s pull back the curtain and explore the complex, fascinating science of the humble DTF film.

The Anatomy of a DTF Film: More Than Meets the Eye

A sheet of DTF film may look simple, but it is a composite structure, typically consisting of three or more distinct layers, each with a specific job to do.

The Base Layer: Polyethylene Terephthalate (PET)

The foundation of the film, which makes up the vast majority of its thickness, is a sheet of Polyethylene Terephthalate, better known as PET. This is the same durable, stable polymer used to make everything from soda bottles to solar panels. It’s chosen for several key properties that are essential for DTF printing:

Dimensional Stability: PET is incredibly resistant to changes in size and shape when exposed to heat. When your film passes through a curing oven at 250°F and then into a heat press at over 300°F, you need it to remain perfectly flat and not shrink or warp. Any distortion would lead to a distorted final print.
Mechanical Strength: The film needs to be strong enough to withstand the pulling and pushing of your DTF printer's roller system without stretching or tearing. PET provides this necessary tensile strength.
Clarity: While not essential for the print itself, the clarity of the PET base allows for easier visual alignment of the transfer on the garment.

The Release Layer: The Secret to a Clean Break

This is the most critical and technologically advanced layer of the film, even though it's only a few microns thick. Applied to the printing side of the PET base, this microscopic coating is the "magic" behind the peel.

The Function: The release layer is engineered to perform a seemingly contradictory task: it must hold onto the wet ink with just enough surface tension to allow for a sharp, detailed print, but then let go of the entire transfer completely and cleanly during the heat press stage.
The Science of Surface Energy: This layer is typically made from a proprietary blend of polymers, often including silicone or other materials with very low surface energy. Think of it like a high-tech non-stick cooking pan. The cured ink and adhesive layer would rather stick to the porous fibers of the fabric than to the slick, low-energy surface of the release coating, especially when heat is applied. The precise formulation of this layer is what determines whether a film is a hot peel or cold peel product.

The Anti-Static & Anti-Slip Coating: The Unsung Hero

On the reverse side of the film, there is often another specialized coating designed to solve two major operational headaches.

Anti-Static Properties: In a dry environment, PET film can generate a significant amount of static electricity. This static will attract dust, pet hair, and, most damagingly, stray particles of your white adhesive powder. An anti-static coating dissipates this charge, ensuring that the powder only sticks to the wet ink of your design, resulting in a clean print without a messy adhesive "halo."
Anti-Slip Properties: The feed rollers inside your DTF printer need to grip the film with consistent pressure to advance it accurately. A glossy, untreated PET surface can be slippery, leading to misfeeds and ruined prints. A matte or textured anti-slip coating on the back gives the rollers something to grab onto, ensuring perfect, repeatable alignment from the start of the roll to the end.

The Peel Equation: Hot Peel vs. Cold Peel vs. Warm Peel

The type of peel is determined by the chemical behavior of the release layer at different temperatures. Choosing the right one depends on your desired finish, production speed, and the complexity of your designs.

Hot Peel Films: The Science of Instant Release

Hot peel films are engineered for maximum production efficiency.

The Chemistry: The polymers in a hot peel release layer are specifically designed to have their adhesive properties weaken dramatically at high temperatures.
How It Works: When the heat press opens, the ink and adhesive transfer is still in a semi-molten state. At this temperature, the bond between the molten adhesive and the fabric fibers is exponentially stronger than the bond between the transfer and the heated release layer. This massive difference in bond strength allows you to peel the film away immediately (within 1-3 seconds) with minimal effort, leaving the entire design on the shirt.
The Result: This process is incredibly fast, allowing for rapid production. The finish is often softer and more matte, as the still-warm ink can settle slightly deeper into the weave of the fabric as you peel. However, it can be less forgiving with extremely fine details, which can be prone to stretching if the peel is not executed smoothly.

Cold Peel Films: The Power of Patience and a Perfect Bond

Cold peel films are the go-to choice for maximum detail and a different aesthetic.

The Chemistry: The release layer on a cold peel film is designed to maintain its grip on the transfer while it is hot. The release properties only activate once the entire transfer has cooled to room temperature.
How It Works: After pressing, the garment is set aside to cool completely. During this cooling process, the thermoplastic adhesive solidifies, forming a rigid, incredibly strong mechanical bond with the fabric's fibers. Once fully cooled, the bond between the transfer and the fabric is permanent, while the bond to the now-cold release layer is negligible. The film can then be peeled away, leaving behind a perfectly sharp transfer.
The Result: Cold peel transfers are known for their exceptionally sharp, fine details and often have a glossier, slightly thicker finish, as the ink sits more on top of the fabric. The process is nearly foolproof, making it very beginner-friendly. The obvious trade-off is a significantly slower production speed, as you must wait for each garment to cool.

The Hybrid Approach: Warm Peel Films

Attempting to bridge the gap between speed and quality, warm peel films have become increasingly popular. Their release layers are tuned to an optimal state within a specific time window (e.g., 10-15 seconds after pressing) when the transfer is no longer molten but not yet fully solidified. This offers a faster workflow than a true cold peel while providing better detail retention and forgiveness than a traditional hot peel.

Troubleshooting Your Peel: A Material Science Perspective

When your peel fails, understanding the science can help you diagnose the root cause.

Problem: The entire transfer is sticking to the film, not the shirt.
The Science: The bond between the adhesive powder and the fabric was never properly formed. This is almost always a failure of the thermoplastic adhesive to reach its target melting temperature and flow into the fabric fibers.
The Fix: Your heat press is the culprit. Verify your temperature with a heat gun, increase your pressure to ensure firm contact, or increase your press time to allow for a full melt.
Problem: Small bits of ink or details are left behind on the film.
The Science: The bond strength is inconsistent across the transfer. Part of the transfer prefers the fabric, while another part still prefers the film's release layer.
The Fix: This is often a timing issue. If using a hot peel film, you may be waiting too long, allowing parts to cool. Peel immediately and confidently. If using a cold peel film, you are peeling too early while the transfer is still warm and the bond hasn't fully solidified. Be patient and wait for it to be cool to the touch. This can also indicate a low-quality film with an inconsistent release coating.
Problem: The edges of my design have a rough or fuzzy adhesive "halo."
The Science: Stray adhesive powder particles were attracted to the film in places other than the wet ink.
The Fix: This points to a static issue. Ensure your film has a good anti-static coating. You can also try using an anti-static brush on the film before printing or increasing the humidity in your room. It also helps to be diligent about tapping off excess powder and using compressed air to blow off any remaining stray particles before curing.

The simple act of peeling a DTF film is the final step in a complex chain of chemical and physical reactions. From the stability of the PET base to the carefully engineered surface energy of the release layer, every element is designed to work in perfect concert with your printer, inks, and adhesives. By appreciating this hidden science, you can elevate your process, solve problems more effectively, and gain a deeper respect for the incredible technology you work with every day.

The Film Lab: Deconstructing Your Technical Curiosities

Can I use a hot peel film for a cold peel, or vice versa?
It is strongly advised against. The release layers are chemically engineered for specific temperature windows. Using a hot peel film for a cold peel will likely result in a difficult, messy peel that leaves residue behind, as the release agent isn't designed to work when cold. Using a cold peel film for a hot peel will almost certainly cause the entire transfer to fail, as the release layer is designed to grip the design firmly when hot.
Why is my DTF film curling up in the curing oven?
This is usually due to one-sided heat application and the quality of the PET base film. A lower-quality or thinner PET film may have less dimensional stability, causing it to warp as the top side heats faster than the bottom. A high-quality, thicker film is more resistant to this curling. Ensure your oven's temperature is not set excessively high, as this can worsen the effect.
Does the thickness of the film (measured in microns) really matter?
Yes, it does. A thicker film (typically around 75 microns or higher) provides better dimensional stability, is less prone to curling in the oven, and generally feeds more reliably through the printer's roller system. While thinner films can work, they are often less forgiving and can be more susceptible to jamming or warping.
How should I store my DTF film rolls for the best results?

DTF film should be stored in its original packaging in a climate-controlled environment. The ideal conditions are between 40-60% relative humidity and 65-75°F. Keeping the film in a sealed bag protects its specialized coatings from dust, debris, and, most importantly, extreme fluctuations in humidity, which can affect its anti-static properties and how it interacts with the ink.
