Hydraulic Heat Press Machine

A hydraulic heat press machine is a commercial press that applies a transfer by pressing a heated upper platen onto a garment using force from an internal hydraulic oil-pressure system.

The HP-1620H hydraulic dual-platen heat press operates up to 500 degrees F and up to 120 psi, and the system is designed to apply controlled hydraulic pressure across repeated press cycles.

Compare the hydraulic press models to see which platen size fits your work.

No. The hydraulic dual-platen heat press needs no external air compressor, no air line and no pneumatic fittings.

Pressure comes from an integrated hydraulic system, which removes the compressor footprint and the utility work a pneumatic press requires. What this press does need is a grounded circuit at the correct voltage.

Review the electrical and installation requirements before ordering.

A hydraulic heat press uses an internal hydraulic system, while a pneumatic heat press requires compressed air from an external compressor.

That single difference changes shop setup, noise source and the equipment you have to buy alongside the press. A pneumatic press makes sense in a shop already running air lines, and a hydraulic press makes sense in a shop that does not.

See the hydraulic vs. pneumatic comparison table for the full side-by-side breakdown, or go straight to the 16x24 pneumatic dual-platen heat press if your shop already has air lines.

Choose the platen that covers your largest print with room to spare, then confirm your shop can supply the required voltage.

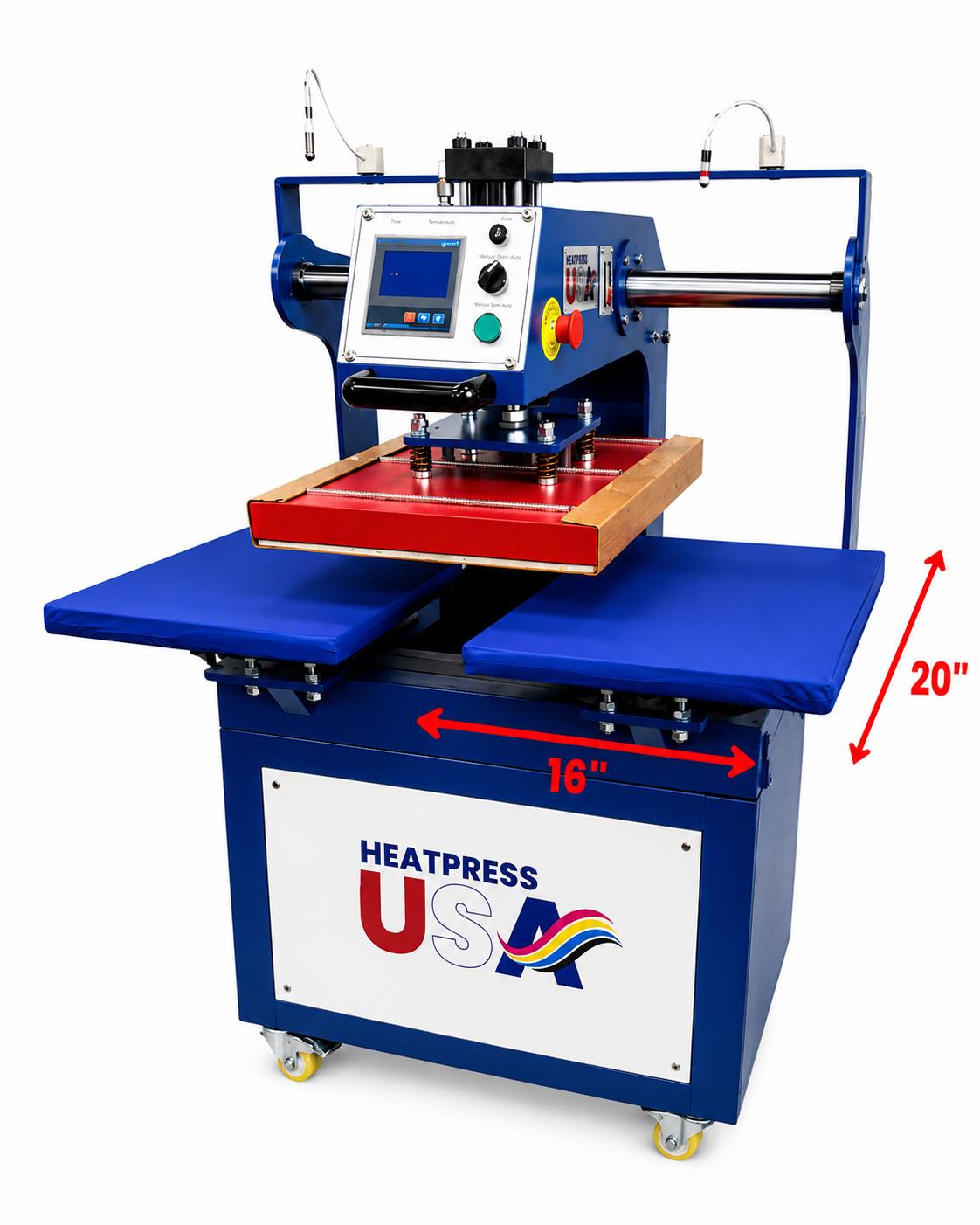

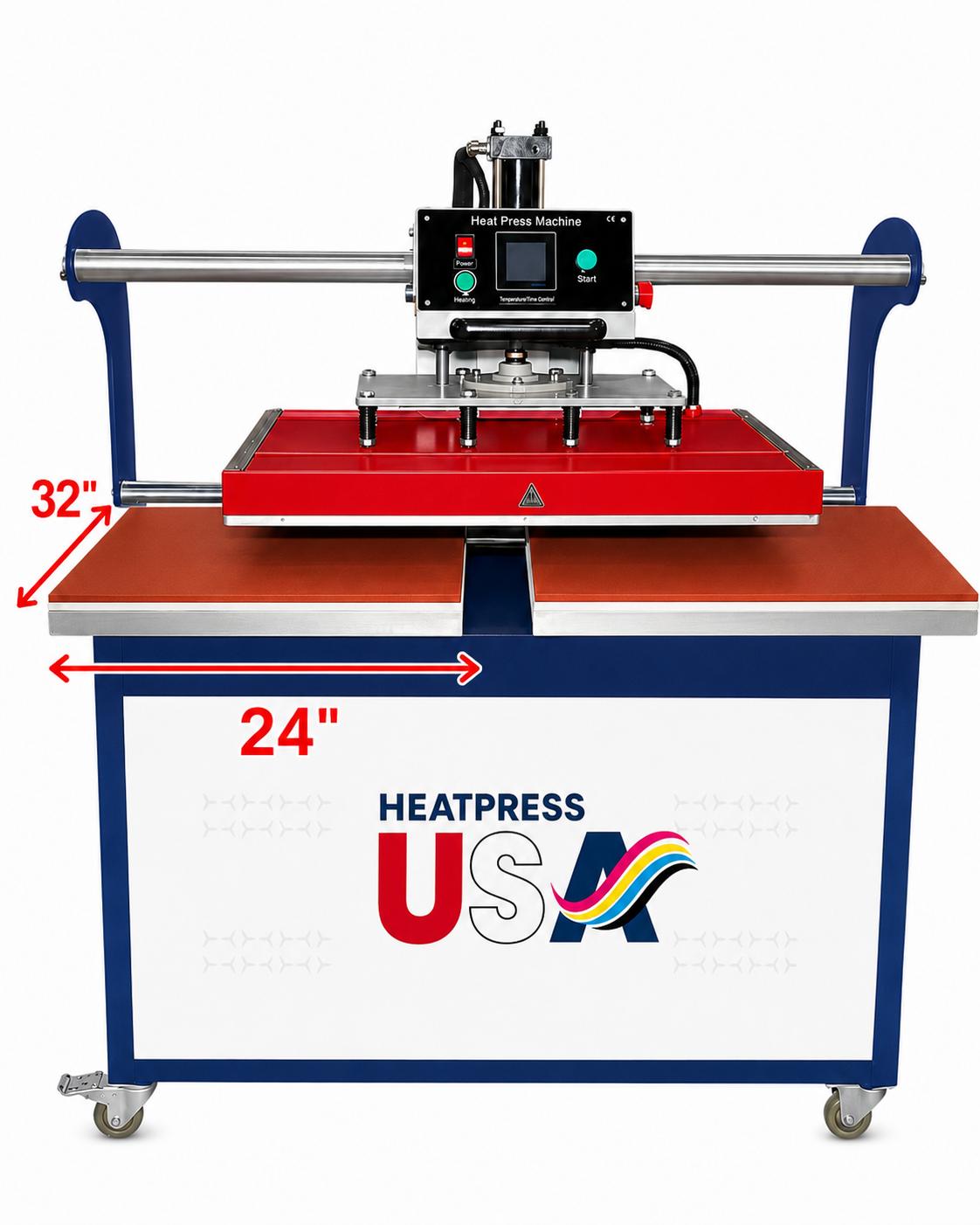

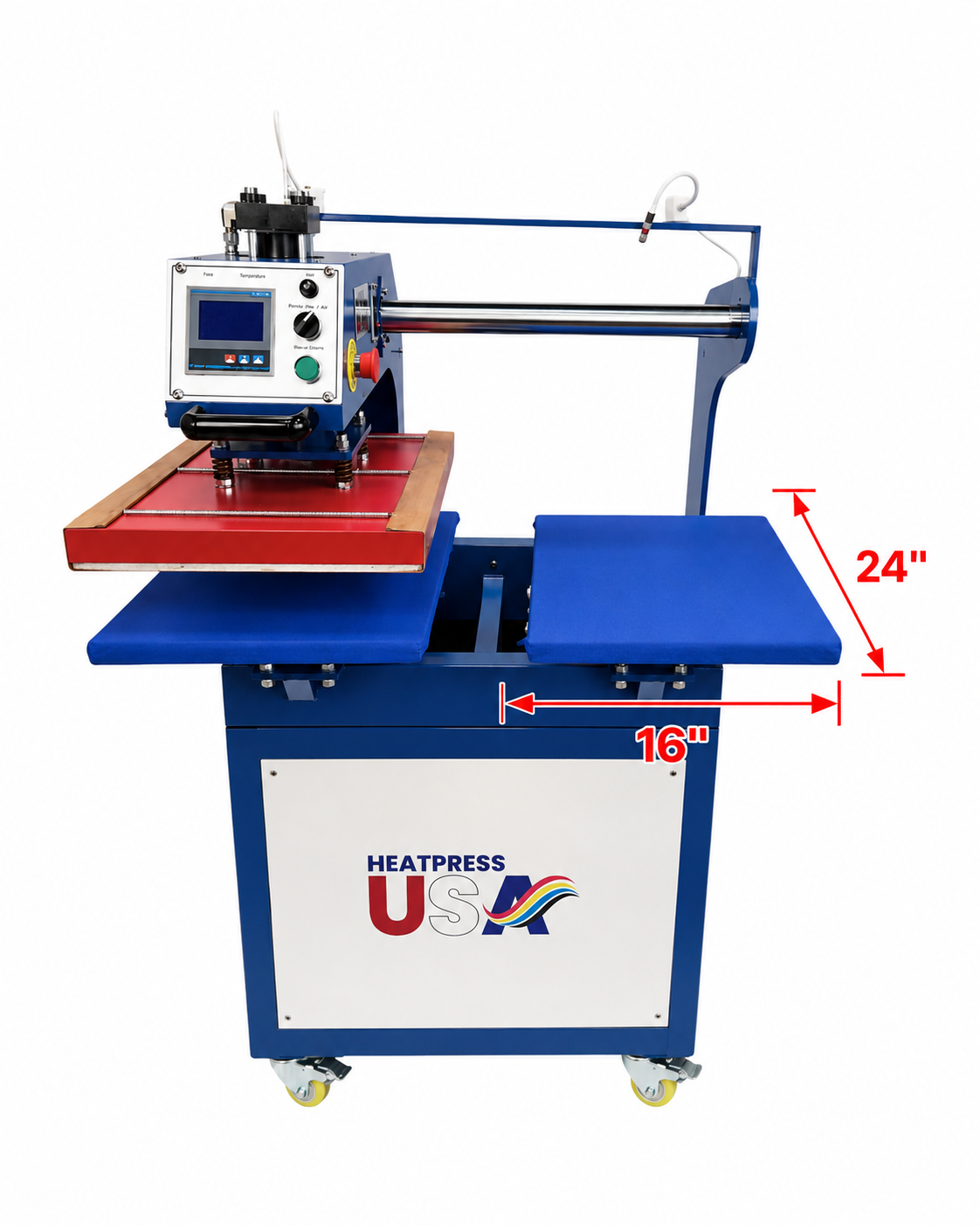

The HP-1620H at 16x20 handles standard chest and back placements on 110V. The HP-1624H at 16x24 takes larger and taller garment designs, also on 110V. The HP-2432H at 24x32 is built for large-format graphics and large apparel panels, and it requires 220V.

Select your size in the variant picker above to load the matching price and specifications.

The transfer must fit inside the platen area of the model you choose: 16 x 20 inches on the HP-1620H, 16 x 24 inches on the HP-1624H, and 24 x 32 inches on the HP-2432H.

Plan the printed area smaller than the platen so the transfer sits fully inside the heated surface with margin on every edge.

Check the specification plate for your model to confirm the exact platen dimensions.

Yes. This commercial hydraulic heat press is designed for repeated DTF and apparel pressing, with a digital controller that allows operators to set repeatable time and temperature values.

Set your values to the temperature, time and pressure your transfer manufacturer specifies, since DTF films and adhesive powders differ between suppliers.

Explore commercial DTF printers and dryers if you are building the full production line.

Yes. Hoodies and sweatshirts press on this machine as long as the garment lies flat on the lower platen and the design fits inside the platen area.

Heavier garments benefit from the larger working areas, so the HP-1624H at 16x24 and the HP-2432H at 24x32 give more room for full front designs.

Follow the pressure and temperature settings your transfer supplier lists for the fabric blend you are pressing.

Yes. Pressure is adjustable on all three models, with a maximum of 120 psi.

Adjustable pressure, temperature and time let one machine handle different transfer types and fabric weights without changing equipment.

Set the exact value your transfer manufacturer specifies rather than defaulting to maximum pressure.

The two lower stations stay fixed and a single heated head travels between them, so the operator can load the next garment while the head is pressing the other station.

With a single-platen press, the operator waits for the active cycle to finish before preparing that platen for the next garment. A dual platen heat press turns that waiting time into loading time.

See the four-step dual-platen workflow for how a full cycle runs.

No. Whether a finishing press is needed depends on the transfer film and adhesive system you are running.

Some DTF systems call for a short second press after peeling, and the dual-platen layout makes that second pass easier to fold into the workflow. The instructions come from your transfer supplier, not from the machine.

Follow the press sheet supplied with your transfers for the exact sequence.

Yes. The HP-1620H runs on 110V at 2100W with a 19A operating load.

The HP-1624H is also 110V at 2400W and 22A, while the HP-2432H requires a 220V supply at 3000W and 14A. Confirm your available supply before selecting a model.

Check the specification plate for your model for the full electrical data.

A dedicated grounded circuit is recommended for the HP-1620H because the machine draws 19A during operation, and the same applies to the HP-1624H at 22A.

Sharing that load with other equipment on one circuit risks nuisance trips and voltage drop during a press cycle.

Have a qualified electrician verify your circuit capacity and grounding before you plug the press in.

No. The press arrives fully assembled and requires no installation service, no assembly and no compressed air hookup.

Once the machine is in position, setup is a matter of plugging it into a grounded circuit at the correct voltage and setting your time, temperature and pressure. The HP-1620H and HP-1624H run on 110V, and the HP-2432H requires 220V. Have a qualified electrician confirm your circuit before first use.

Read the electrical and delivery requirements to check your setup.

Yes. The HP-1620H is built for exactly that case: it arrives assembled, runs on a standard 110V circuit, needs no air compressor, and at 33 inches across it fits through a standard 36 inch doorway.

The practical limit is delivery rather than operation. The crate weighs 520 pounds and ships by freight, so arrange liftgate service and help moving it into position. Once it is in place, a garage shop runs it the same way a warehouse does.

Contact the equipment team to plan delivery to a residential or small commercial address.

Plan for a footprint of 37.5 x 33 inches on the HP-1620H, 37.5 x 35 inches on the HP-1624H, and 67.5 x 34 inches on the HP-2432H, measured length by width, plus clearance around the machine for two-station loading.

Add space in front of the press for garment staging and space behind or beside it for finished pieces. The HP-1620H takes up about as much floor as a small workbench, which is why it works in a garage shop as readily as in a warehouse.

See the full dimension and doorway table for machine and crate sizes side by side.

Machines at this weight generally ship crated by freight, since shipping weights run from 520 lb on the HP-1620H to 600 lb on the HP-2432H.

Freight procedures vary by carrier and destination. Appointment delivery, liftgate service, residential delivery and unloading assistance may require advance coordination or additional charges.

Contact the equipment team before ordering to confirm delivery for your address.

Residential freight delivery depends on the carrier serving your address and on the equipment available for unloading.

A residential address without a dock generally requires liftgate service. Standard liftgate service typically lowers the crate to ground level, and moving the crate beyond that point may require separate equipment or assistance.

Contact the equipment team with your address before ordering so delivery is arranged correctly.

The HP-1620H does. At 33 inches across it clears a standard 36 inch doorway with roughly 1.5 inches to spare, which makes it the model to choose when the press has to come into a garage shop or a unit with a standard entry door.

The HP-1624H is 35 inches across, tighter than the roughly 34.5 inches of clear opening a 36 inch door actually gives once the door and stops are in place. The HP-2432H is 34 inches across but 67.5 inches long, so the width passes while the length needs room to turn. Crates run about 2 inches wider than the machine on every model, so plan to uncrate outside if the entry is tight.

Measure your own clear opening and check it against the specification plate for your model before you order.

Routine maintenance covers platen cleanliness, inspection of moving parts, a check for oil leaks around the hydraulic system, and periodic inspection of the power cord and electrical connections.

Perform every service step according to the instructions in the machine manual, including the oil type and service interval specified there.

Reach support if the manual does not cover your question.

The heat press carries a 12-month limited warranty from the original purchase date, covering non-consumable components used under normal conditions: the control board, wiring and internal electronics, the hydraulic pump, motor and hydraulic system, structural mechanical parts, platen mounts and frame components.

Consumable and wear items fall outside coverage, including pressure pads, silicone mats, high-temperature sheets, platen covers, laser guides, fuses, power cords, buttons and exterior panels, along with parts affected by normal usage, poor maintenance, improper storage, environmental exposure, misuse, accidents or unauthorized modifications.

Contact support for the full warranty terms and replacement part availability for your model.

Eligible replacement parts covered under the warranty are free, but the customer pays all shipping costs.

On-site service, technician visits and labor are not included. DTF Printer USA provides remote support by email, phone or video, including repair guidance and tutorials where available. Budget for a local technician if you would rather not fit the part in house.

Contact support to open a warranty case and confirm which parts apply to your model.
